COOL, CONNECT & PROTECT YOUR MOULD

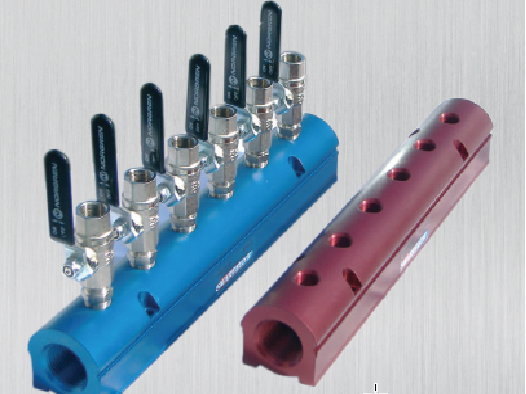

ALUMINIUM MANIFOLDS

High quality and manufactured to exacting standards

One piece extrusion and anodized for corrosion protection.

  • Predrilled for easy mounting
  • Bespoke to your porting requirements
  • Anodized for corrosion protection
  • 3/4” to 2” BSPP Supply – 1/4 to 1” BSPP Ports
  • Interlocking bodies (3/4” to 1-1/2”)
  • Available with connectors, ball valves and flow meters

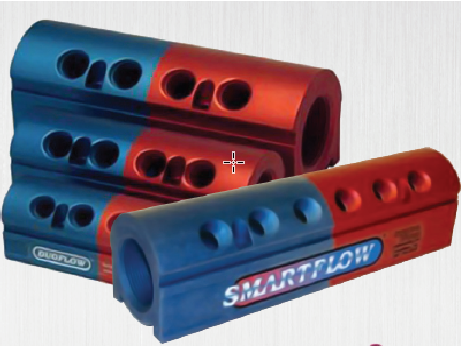

SMARTFLOW DUOFLOW™ MANIFOLDS

Duoflow Manifolds are robust extruded aluminium manifolds similar to the original Smartflow onepiece

design. The manifolds are divided internally and anodized for long term protection. The Duoflow design is available with standard port spacing or a shorter footprint specifically for mounting directly to an injection mould tool.

  • Shorter length for easier mounting directly to injection moulds
  • Mould-Mount to speed up mould changes
  • Economical, Proven Design for reliability
  • Optional Quick Disconnect Fittings for convenience and ease of installation

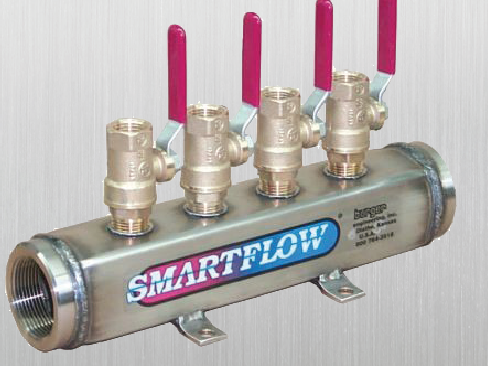

STAINLESS STEEL MANIFOLDS

304SS cunstruction giving you corrosion and chemical protection



  • Leak tested · Bespoke to your porting requirements
  • Single or parallel · 3/4” to 1-1/2” BSPP Supply – 1/4 to 1/2” BSPP Ports
  • Chemical protection · Available with connectors, ball valves and flow meters
  • Predrilled for easy mounting

THE SWAP™ VALVE

Empty your mould tool of water in seconds! corrosion and chemical protection



  • Full port design
  • Valves discs 303 stainless steel
  • No water to dispose
  • Significantly reduce tool change times
  • Body 360 solid brass
  • Protect tools from corrosion during storage
  • Environmentally Friendly

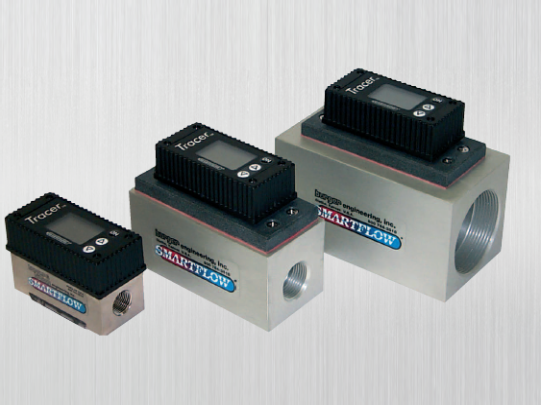

Tracer Electronic Flowmeters

DD Model – Tracer® Electronic Flowmeter

With FCI (Flow Characteristic Indicator) Model DD Measures liquid flow rate, temperature, calculates BTU’s per minute, and Turbulent Flow. Quickly spot-check temperature and flow in water lines using the LCD TRACER® flowmeter. This portable LCD unit is unmatched as a troubleshooting tool.

DDS Model – Switching Tracer® Flowmeters

with Programmable SPDT Switch, Analog Output, and Flow Characteristic Indicator (FCI). Model DDS Measures liquid flow rate and temperature while providing one programmable switching set point for high or low flow or temperature

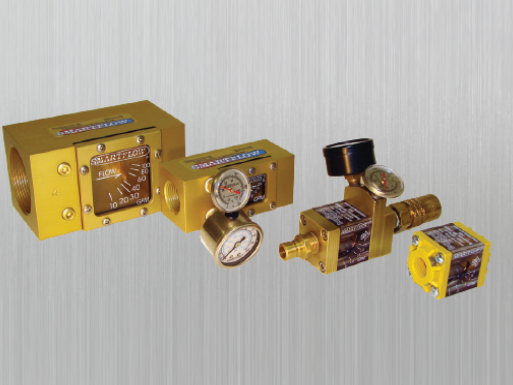

Mechanical Flowmeters

AVAILABLE AS SMALL, MEDIUM OR LARGE MECHANICAL FLOWMETERS

Smartflow® mechanical flowmeters are durable, vane- operated devices that provide visual indication of flow rate in many different styles and sizes. Rugged wetted parts are compatible with many process liquids

Download Catalog
